Task 14 - Extend the pipeline with automated tests (Optional)

Estimated Time to Complete: ~15 minutes

In Task 13 you ran a CI/CD pipeline with validate, plan, and deploy stages. In this task you'll extend it with a test stage that automatically validates deployments after they're applied - the same thing you ran manually in Task 11, now on every merge.

What you'll learn

By the end of this task you will have:

• Edited .gitlab-ci.yml to add a new test stage between deploy and notify
• Added a test-integration job that runs nac-test against the live devices
• Added a test-idempotency job that runs terraform plan -detailed-exitcode to catch configuration drift
• Read the test results as JUnit reports attached to the pipeline

Test stage

Adding automated testing to your CI/CD pipeline ensures that:

• Configurations are correctly applied to devices
• The deployment is idempotent (running it again produces no changes)
• Any issues are detected immediately after deployment

You'll add two test jobs:

• test-integration - Runs nac-test to verify configurations match expected state
• test-idempotency - Runs terraform plan again to confirm no drift

Step 1: Open pipeline definition file

How to Open Web IDE

1. In Chrome inside your RDP session (Windows 10 VM), open GitLab in a new tab: https://198.18.133.101
2. Navigate to the netascode/nac-iosxe-terraform project

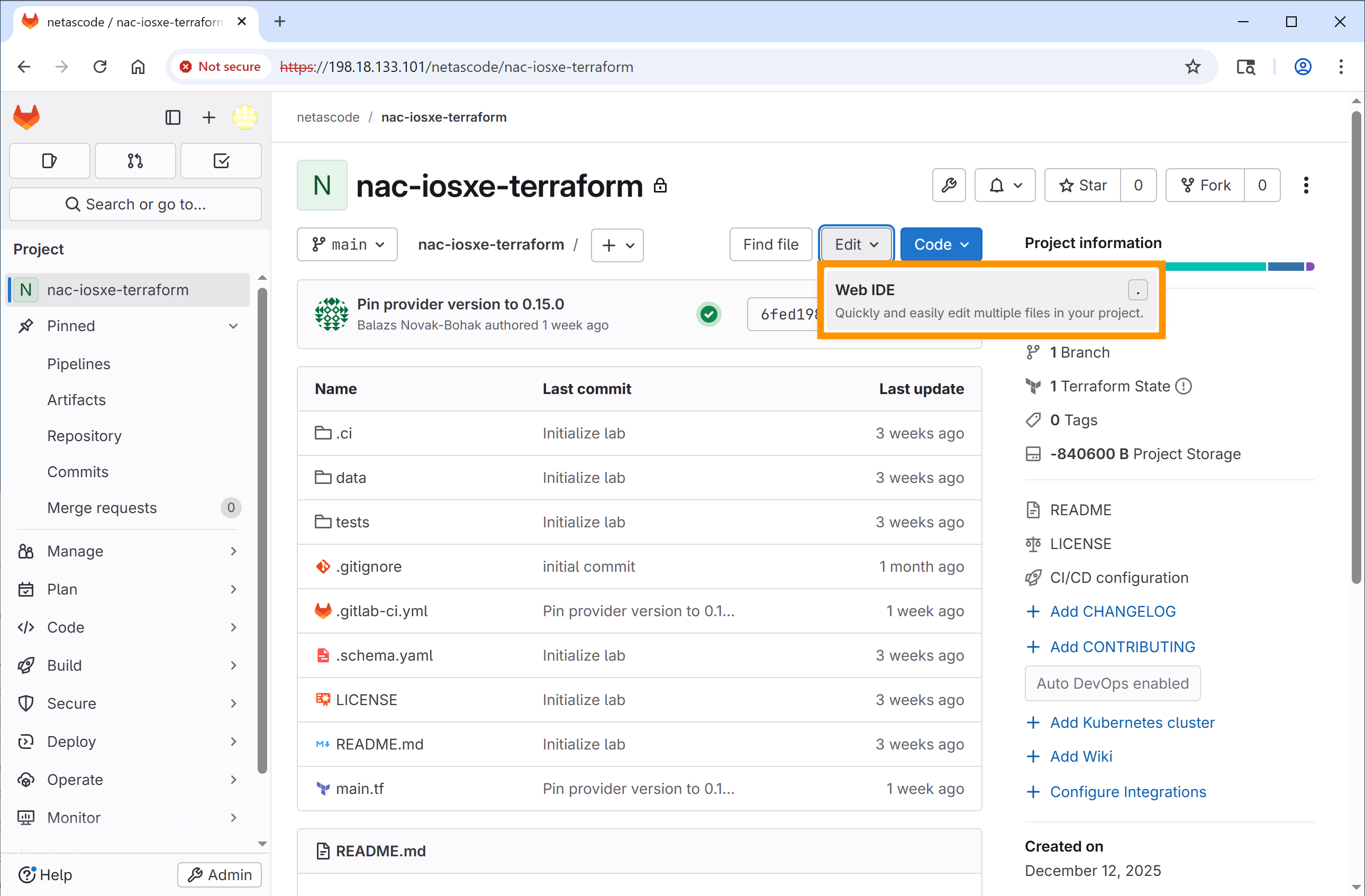

3. From the project page, click the Edit dropdown button (with a pencil icon)
4. Select Web IDE

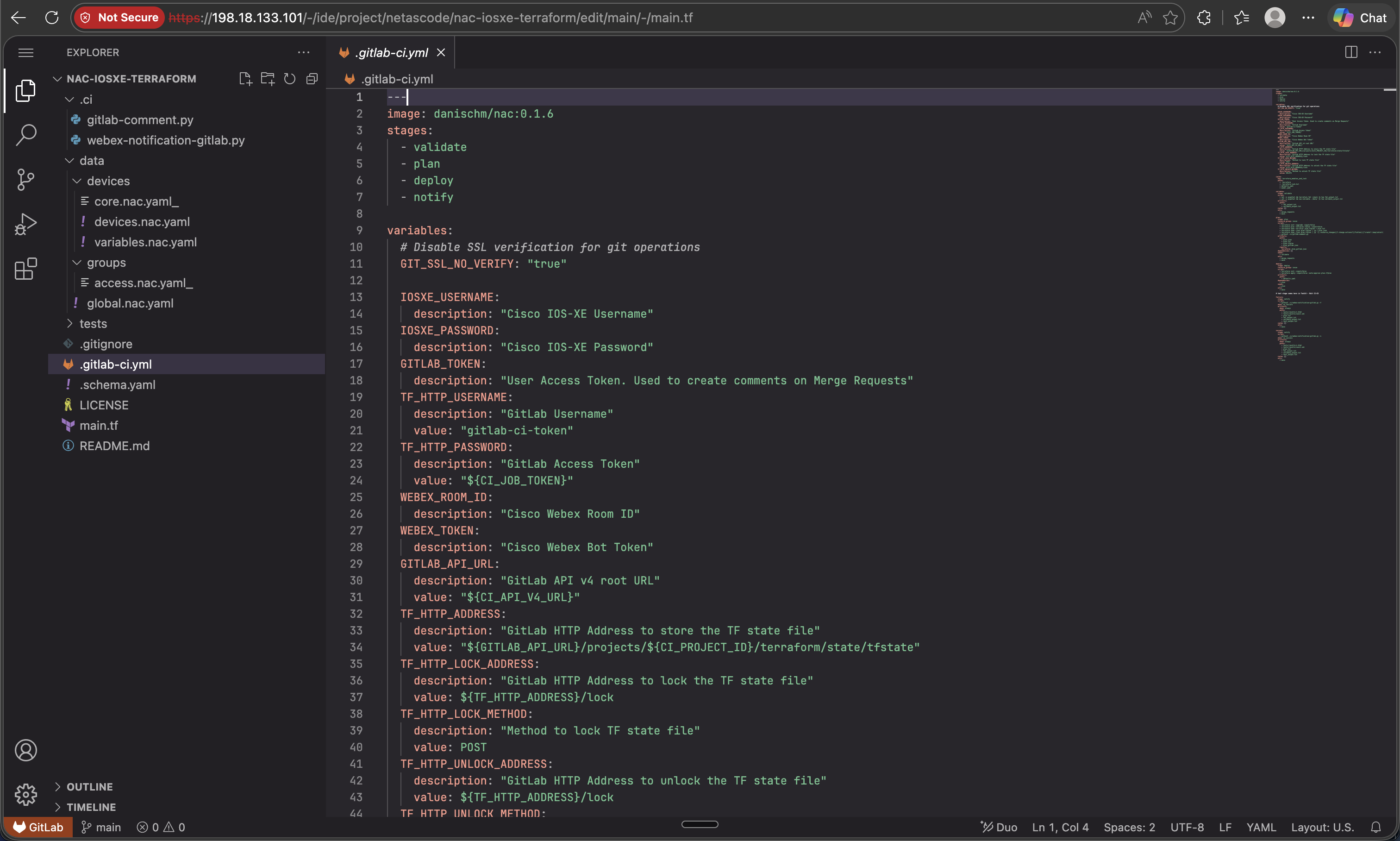

In the Web IDE, click on .gitlab-ci.yml in the Explorer panel to open it for editing.

Step 2: Add the test stage

Find the stages section at the top of the file. You need to add test between deploy and notify.

Find this section:

stages:
  - validate
  - plan
  - deploy
  - notify

Add test so it looks like this:

stages:
  - validate
  - plan
  - deploy
  - test
  - notify

Step 3: Add the test-integration job

After the deploy job section (around line 115), add the test-integration job. This job runs nac-test to verify your configurations.

Add this new job after the deploy: section:

test-integration:
  stage: test
  script:
    - echo "=== PWD and tree ==="; pwd; ls -la
    - echo "=== Inputs nac-test needs ==="; ls -la model.yaml defaults.yaml || true
    - echo "=== tests/ scaffolding ==="; ls -la tests/ tests/templates tests/filters || true
    - echo "=== nac-test version ==="; nac-test --version || true
    - mkdir -p tests/results
    - set -o pipefail && nac-test --data ./model.yaml --data ./defaults.yaml --templates ./tests/templates --filters ./tests/filters --output ./tests/results |& tee test_output.txt
  after_script:
    - echo "=== tests/results contents (post-run) ==="; ls -la tests/results || true
    - echo "=== last 50 lines of test_output.txt ==="; tail -n 50 test_output.txt || true
  artifacts:
    when: always
    paths:
      - tests/results/
      - test_output.txt
    reports:
      junit: tests/results/xunit.xml
  dependencies:
    - deploy
  needs:
    - deploy
  only:
    - main

What this job does:

• The pre-nac-test echo/ls lines print the working directory, the data files (model.yaml, defaults.yaml), and the tests/ scaffolding so a missing input is obvious in the log instead of being inferred from a downstream failure.
• mkdir -p tests/results guarantees the output directory exists before nac-test writes to it, so the artifact glob never trips on a missing parent.
• script: Runs nac-test with your data files and test templates.
• after_script: Always runs (even on failure) and prints the contents of tests/results/ plus the tail of test_output.txt, so you see what nac-test actually produced.
• artifacts: Uploads the entire tests/results/ directory (HTML reports, log, output.xml, xunit.xml) so a partial run is still inspectable.
• reports: junit: Integrates test results into GitLab's test reporting UI.
• dependencies and needs: Ensure this job runs after deploy completes.
• only: main: Only runs on the main branch (not merge requests).

Step 4: Add the test-idempotency job

Add another test job that verifies idempotency - running Terraform again should show no changes if the deployment was successful.

Add this job right after the test-integration: job block:

test-idempotency:
  stage: test
  resource_group: iosxe
  script:
    - terraform init -input=false
    - terraform plan -input=false -detailed-exitcode
  dependencies:
    - deploy
  needs:
    - deploy
  only:
    - main

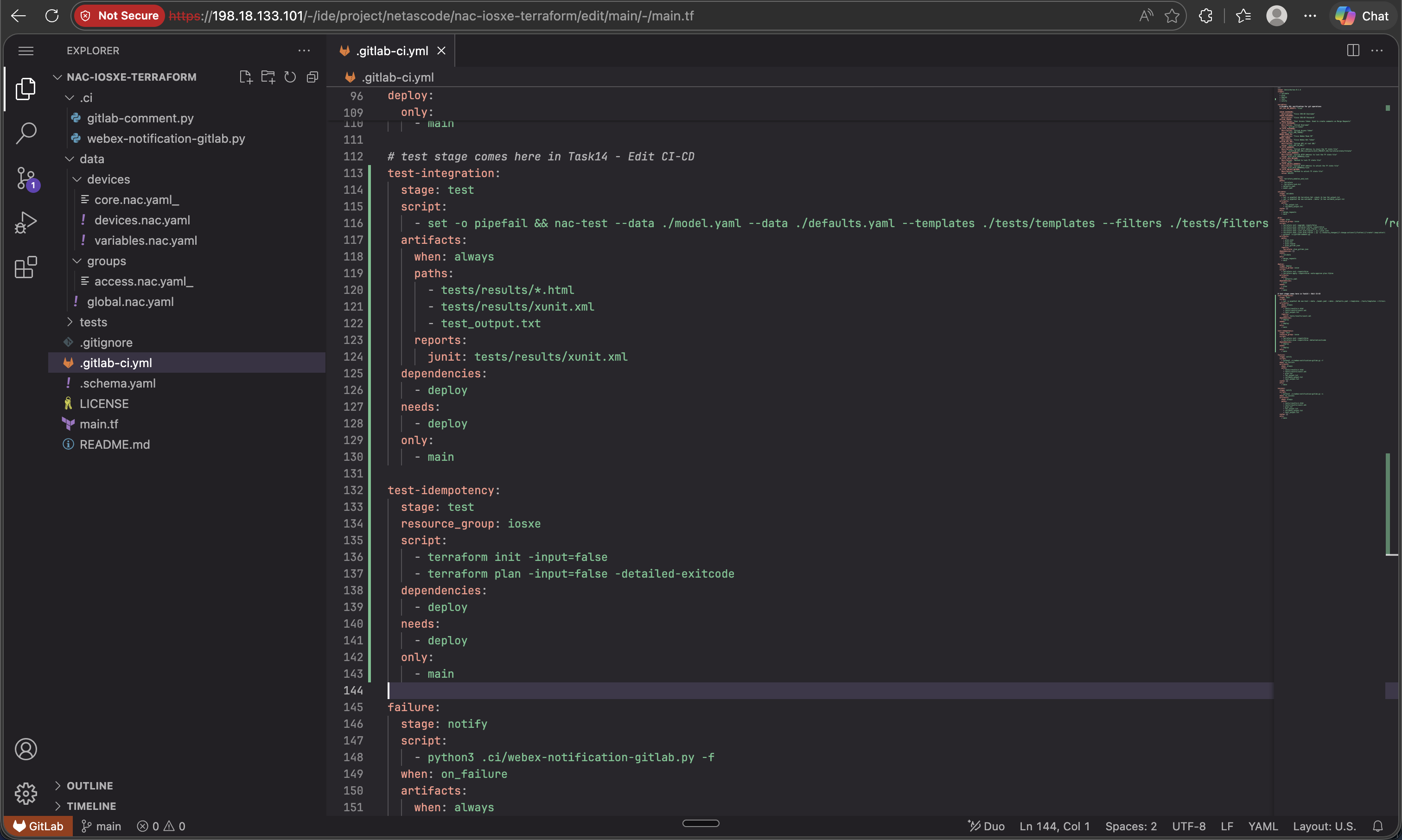

In the end, your test stage section should look like this:

What the test-idempotency job does:

• terraform plan -detailed-exitcode: Returns exit code 2 if there are changes, failing the job
• resource_group: iosxe: Prevents concurrent access to devices
• If this job passes, it confirms your deployment is idempotent

Step 5: Add ACL configuration

Just as in Task 11 - Post-checks, you will add the ACL configuration to test the pipeline.

1. In the Web IDE file explorer, navigate to data/ and rename groups/access.nac.yaml_ to groups/access.nac.yaml (remove the trailing underscore).
2. You may review the ACL configuration by opening the file - it defines the standard ACL named AccessLayerACL that you configured in Task 4 - Device group configuration. You will notice that additional entries have been added to the Access List.

Step 6: Commit your changes

After making all the changes:

1. In your Web IDE, click on Source Control icon in the left sidebar (as you did in Task 13)
2. You'll see the modified files listed: .gitlab-ci.yml and data/groups/access.nac.yaml
3. Enter a commit message:

   Add test stage to CI/CD pipeline


4. Click Commit and push to 'main'

Step 7: Verify the pipeline

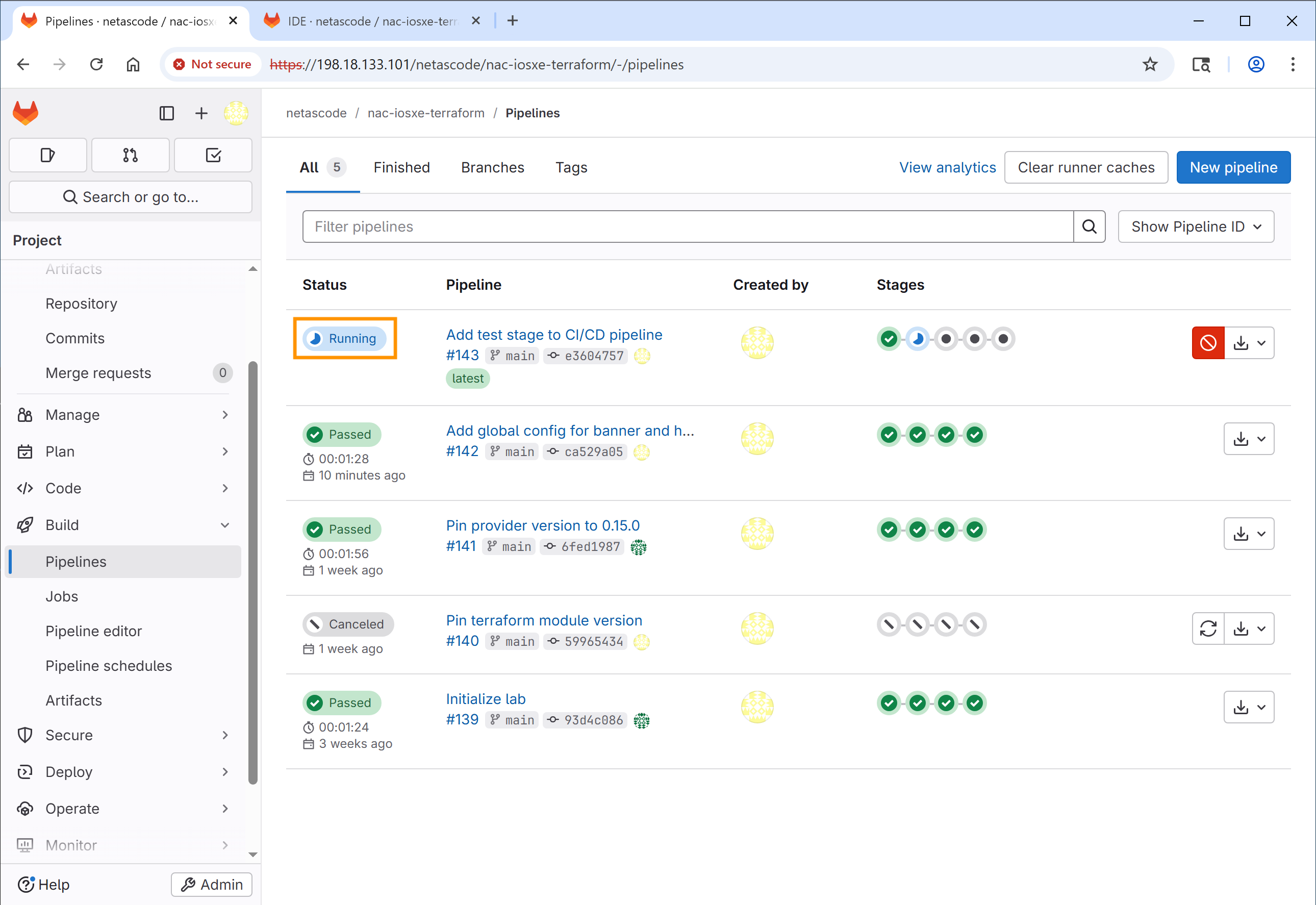

After committing, a new pipeline will automatically start. Navigate to Build → Pipelines and click on the pipeline showing running status to watch its progress.

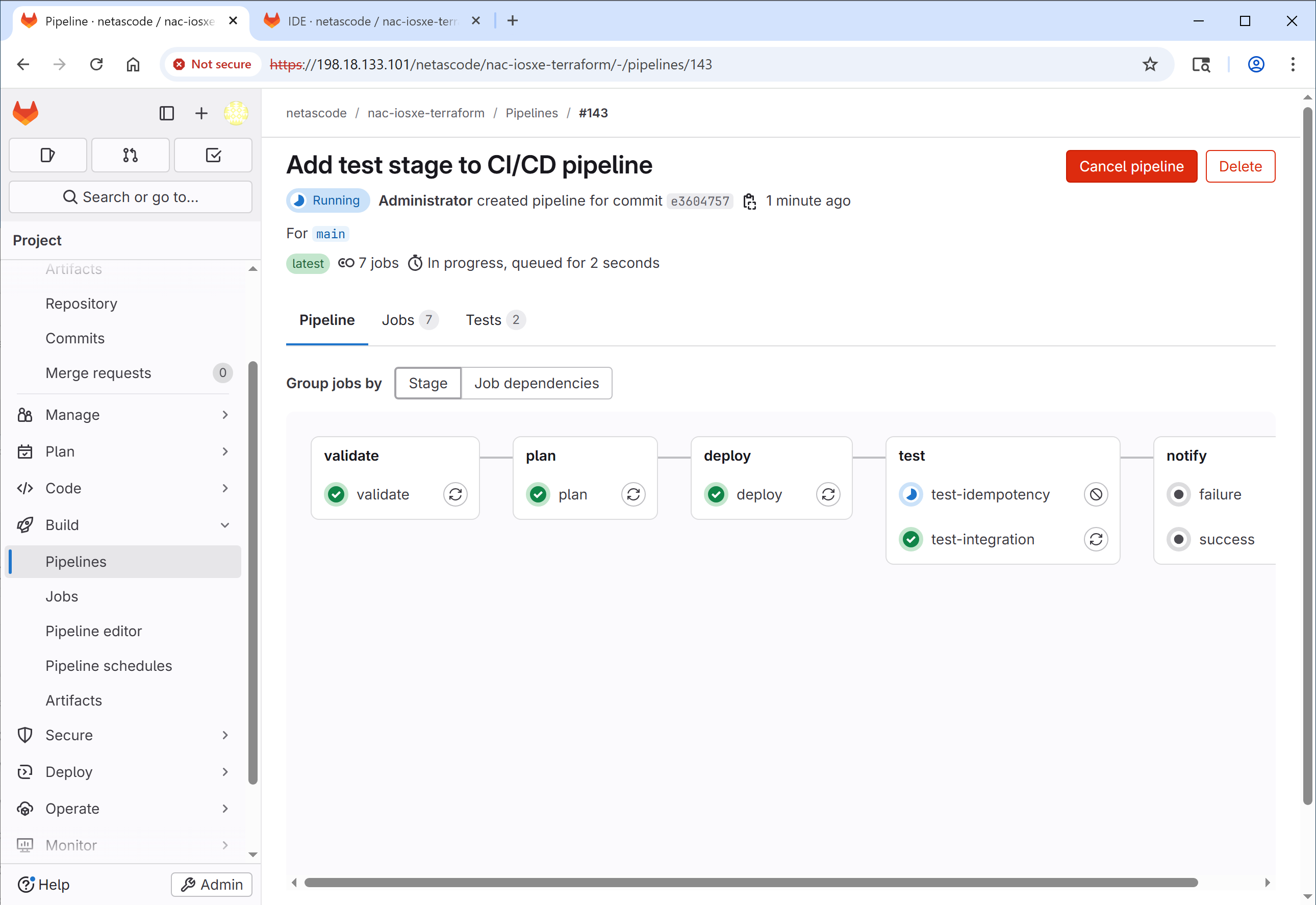

You should now see 5 stages in the pipeline:

1. validate - schema and format validation. Usually <10s.
2. plan - Terraform planning. ~30-60s.
3. deploy - apply configuration. ~60-90s.
4. test - integration (nac-test) + idempotency (terraform plan -detailed-exitcode). ~45-60s - nac-test does the heaviest work here.
5. notify - success/failure notifications. <5s.

End-to-end with the test stage, expect about 3-4 minutes total. If test sits on running for more than 3 minutes, it's probably waiting on a device that didn't respond - click into the job to see which assertion timed out.

Step 8: Review test results

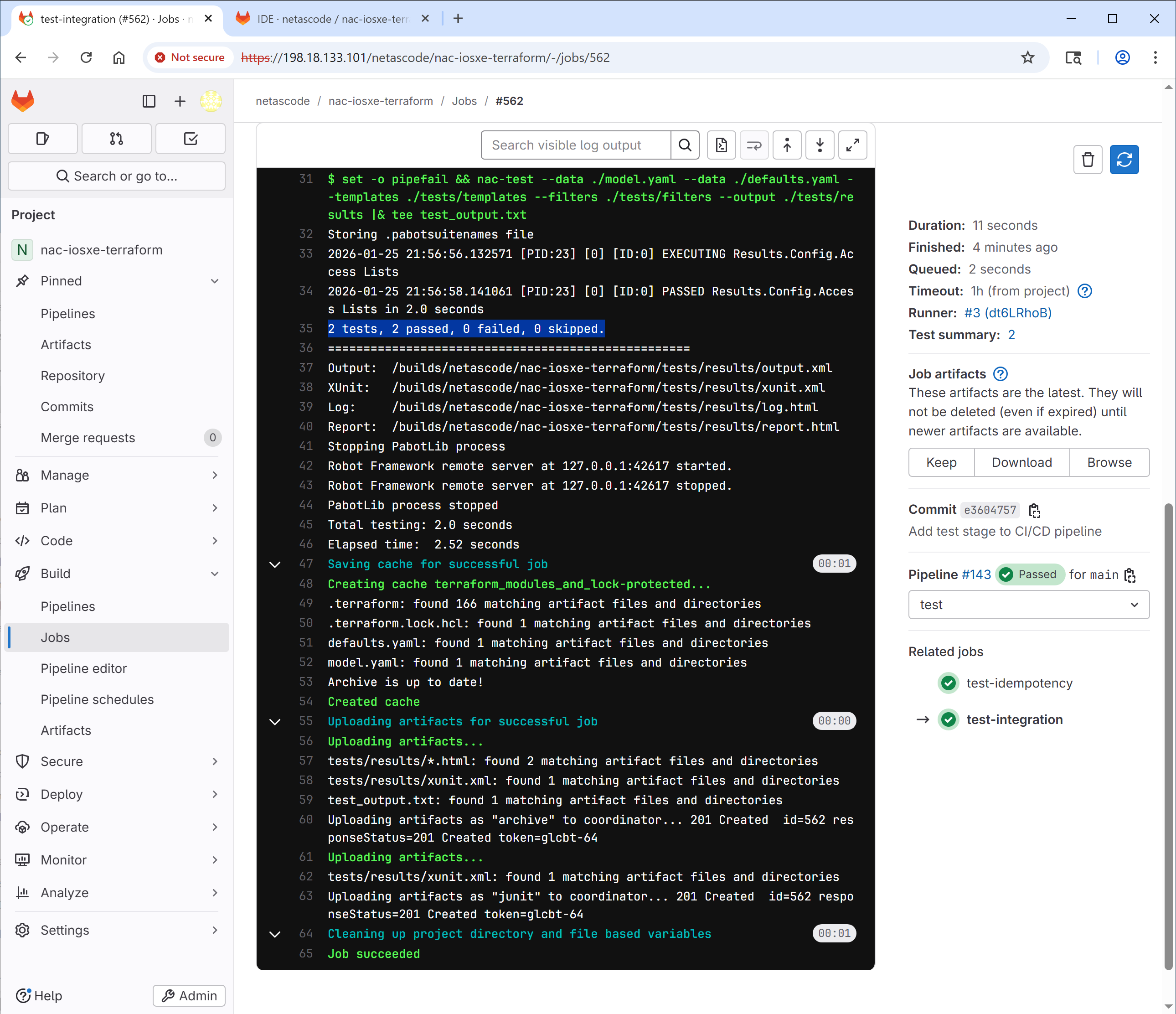

• After the pipeline completes, click on the test-integration job to view the test results.
• Review the logs to see the output of nac-test. You should see that all tests have passed successfully: 2 tests, 2 passed, 0 failed, 0 skipped.

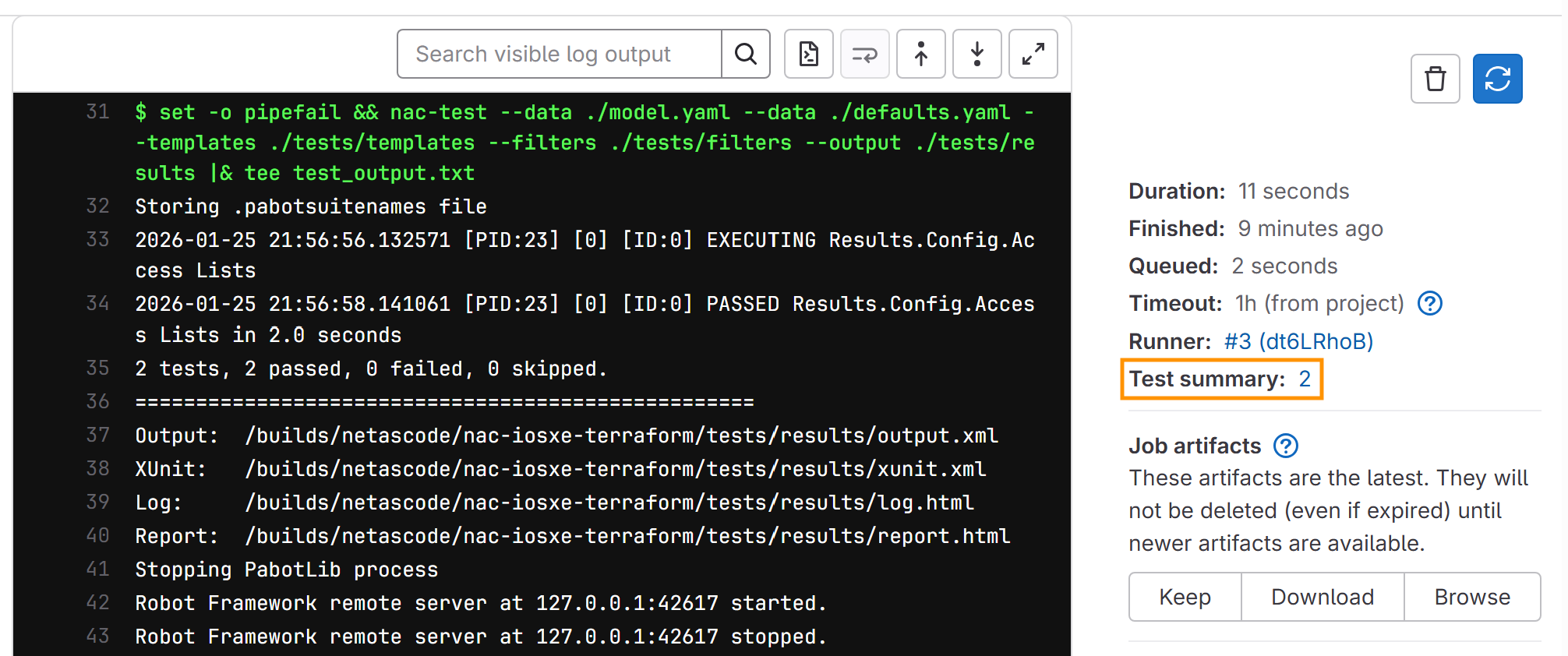

• Click on Test Summary on the right sidebar.

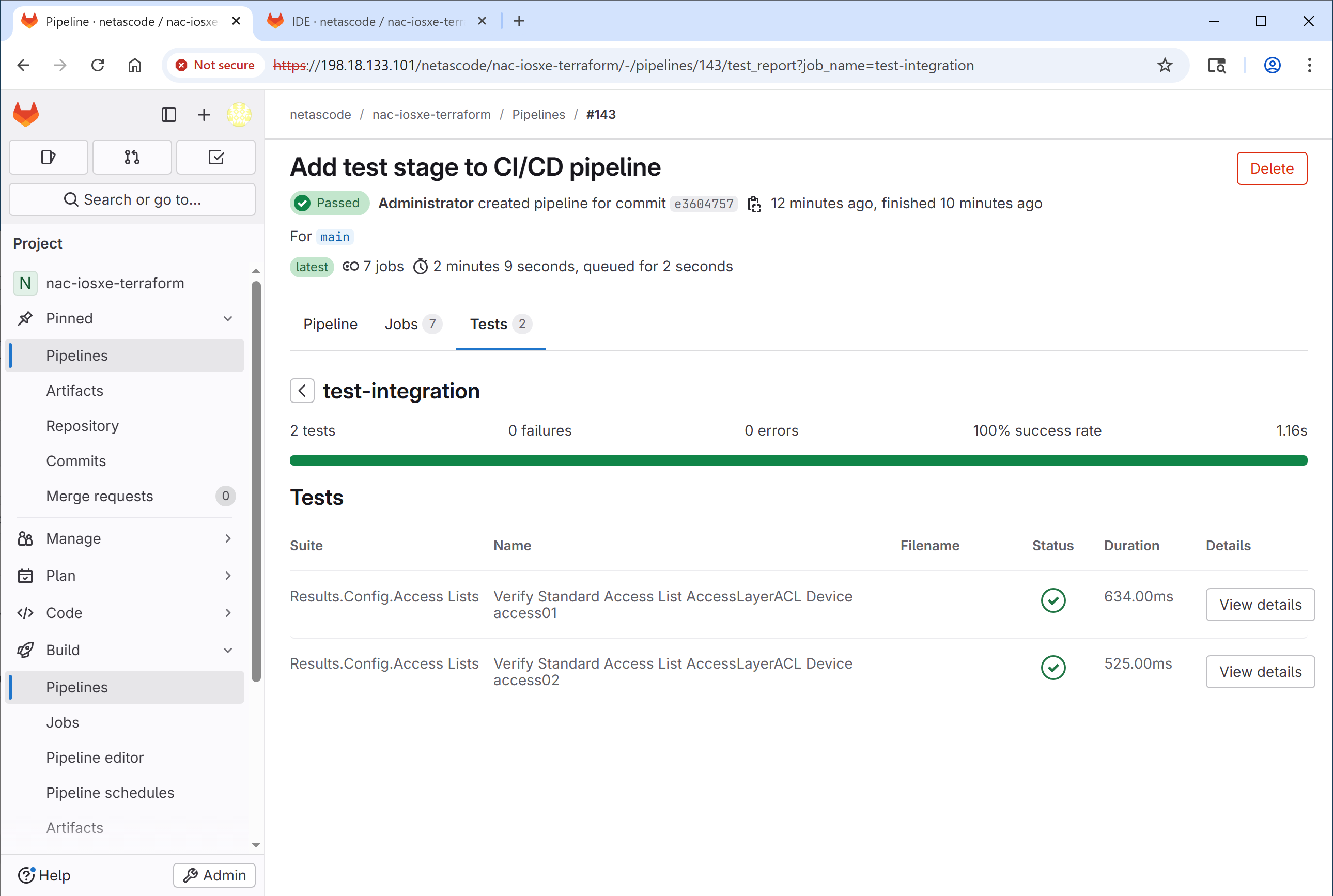

This is where GitLab displays the test results from the JUnit report. You should see a summary indicating all tests passed.

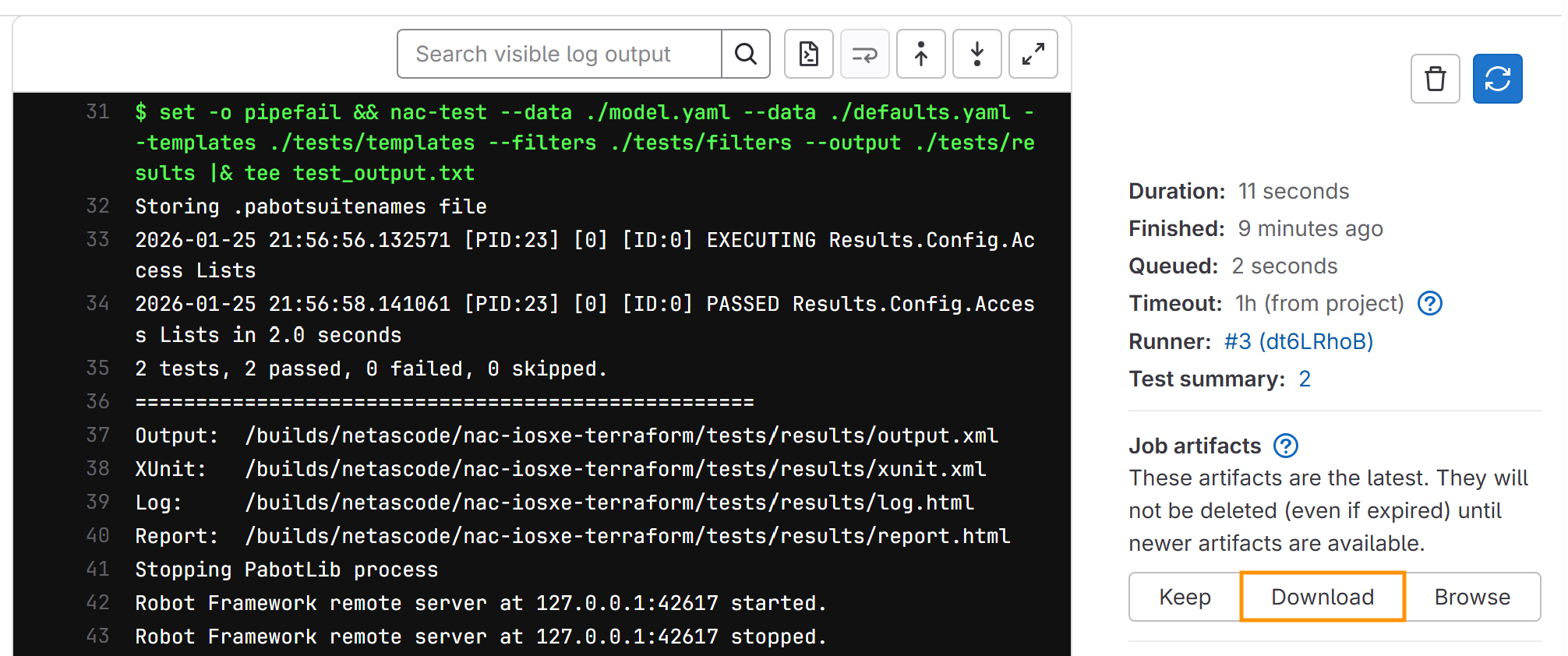

• Go back to the job page and find the Job artifacts section on the right sidebar. Click on Download to download the test report and log HTML files.

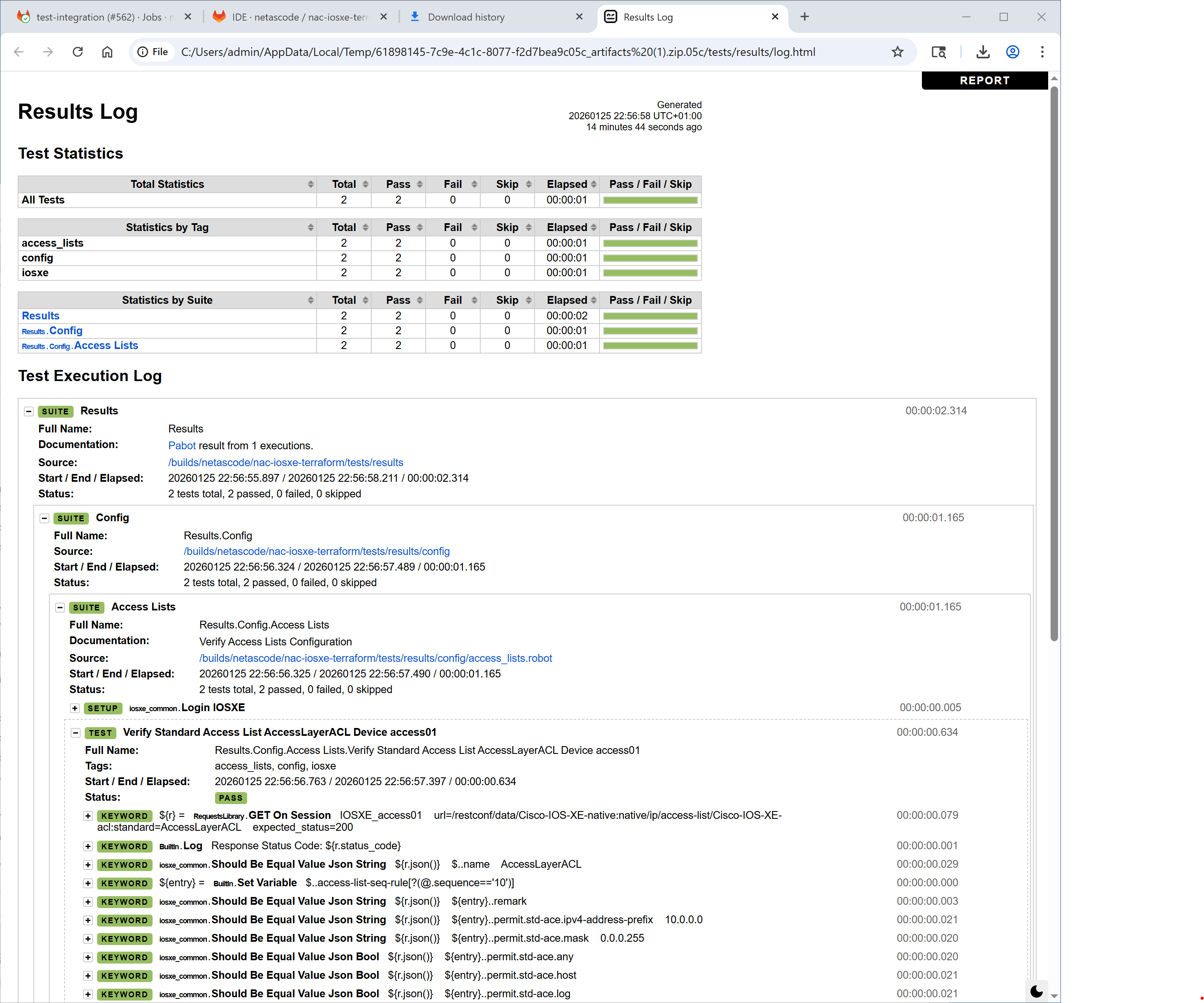

• Open and inspect the report.html and log.html files in your web browser. The report will show the same tests as in Task 11 - Post-checks, confirming the configurations were applied correctly.

What you've accomplished

• ✅ Added a test stage to the CI/CD pipeline
• ✅ Configured integration tests with nac-test
• ✅ Added idempotency verification
• ✅ Verified the enhanced pipeline runs successfully

What's next

Task 15 is the last optional task - it introduces the merge request workflow with protected branches, so changes land on main only after review. If you're at the end of your time box, jump to the Conclusion.

← Previous: Task 13 - Run a CI/CD pipeline · Next: Task 15 - Merge request workflow
